Horizontal Lifeline Systems
Horizontal Lifeline (HLL) Systems are a smart, versatile solution for protecting workers at height. By securing a worker to a cable anchored at both ends, HLL systems enable safe and continuous movement across elevated work areas. Designed for both fall arrest, stopping a fall, and fall restraint, preventing access to fall hazards, these systems deliver dependable safety without compromising productivity.
Benefit
Versatile Installation
Permanent, temporary, or customized options
Built for Any Environment
Stainless steel or galvanized options
Continuous Protection
Provides an uninterrupted tie-off
System Types and Applications
Roof Horizontal Lifeline

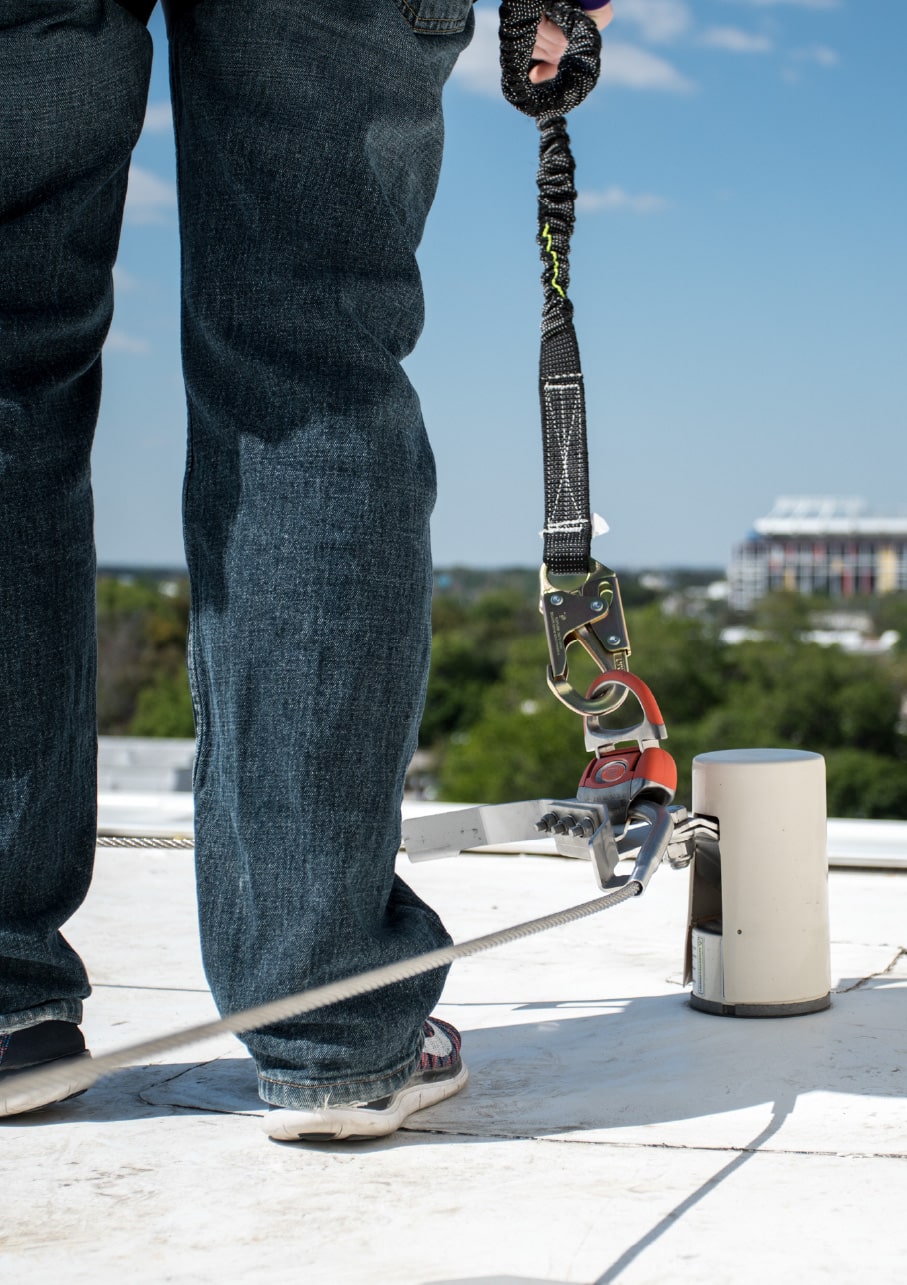

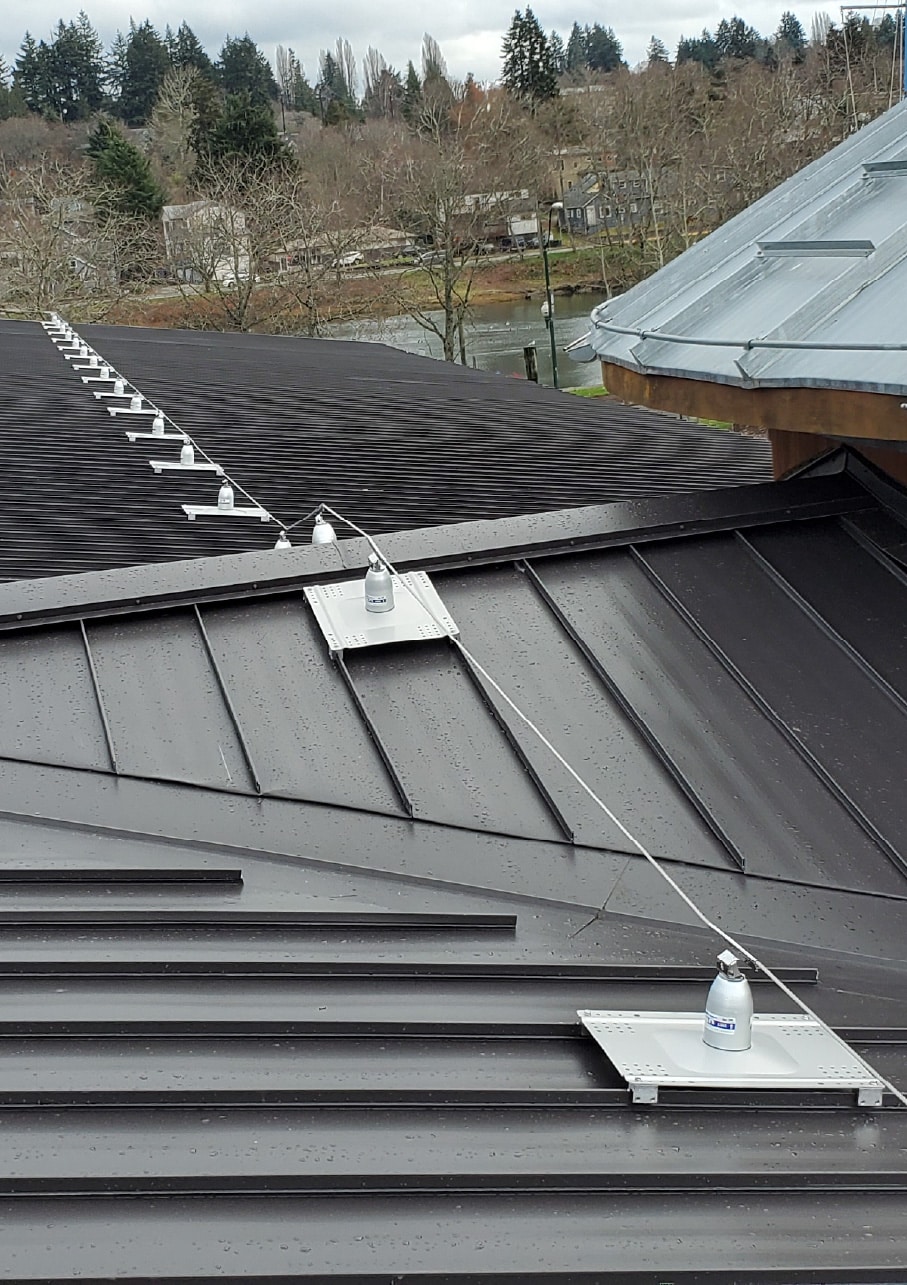

Used for roof maintenance, inspections, and installations , these systems can be permanent for frequent access or temporary for short-term projects. They can be installed on flat, pitched, or metal roofs.
Overhead Horizontal Lifeline
Installed on beams or ceilings above the worker, these lifelines are ideal for workers accessing equipment from above like transport vehicles, railcars, aircraft maintenance bays, and industrial lines or machinery in manufacturing settings. The smooth-gliding overhead trolley allows for continuous, hands-free mobility along the fall protection lifeline, enhancing safety and productivity.
Standard Horizontal Lifeline

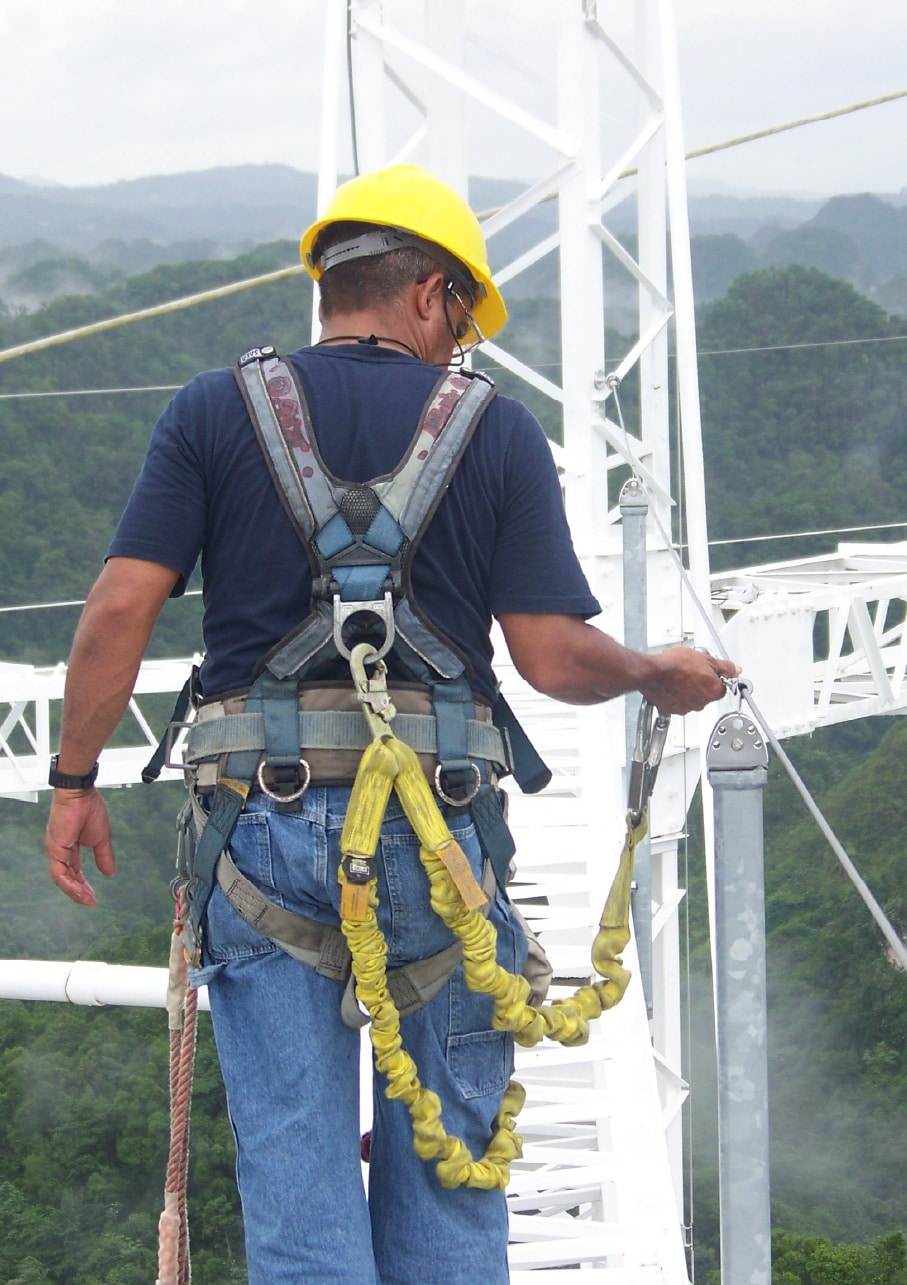

Horizontal lifelines are safety systems that span between vertical supports, like beams or columns. They are installed at waist height for jobs in steel erection, warehouse racking, shipyards, and steel mills. They use trolleys for smooth movement and are built with corrosion-resistant materials and durable cables to withstand harsh industrial environments, such as those found in oil refineries and chemical plants. These systems provide fall protection for tasks like valve adjustments and pipe modifications.
Temporary Horizontal Lifeline (THLLs)
Ideal for fast-changing construction sites, THLLs are quick to install and easy to move. They offer flexible protection for work like scaffolding, steel erection, and concrete pouring, adapting easily as job site conditions evolve.
Horizontal Lifeline Components
A standard horizontal lifeline system is an engineered solution comprising several critical parts that work together to ensure worker safety.
Lifeline & Anchors

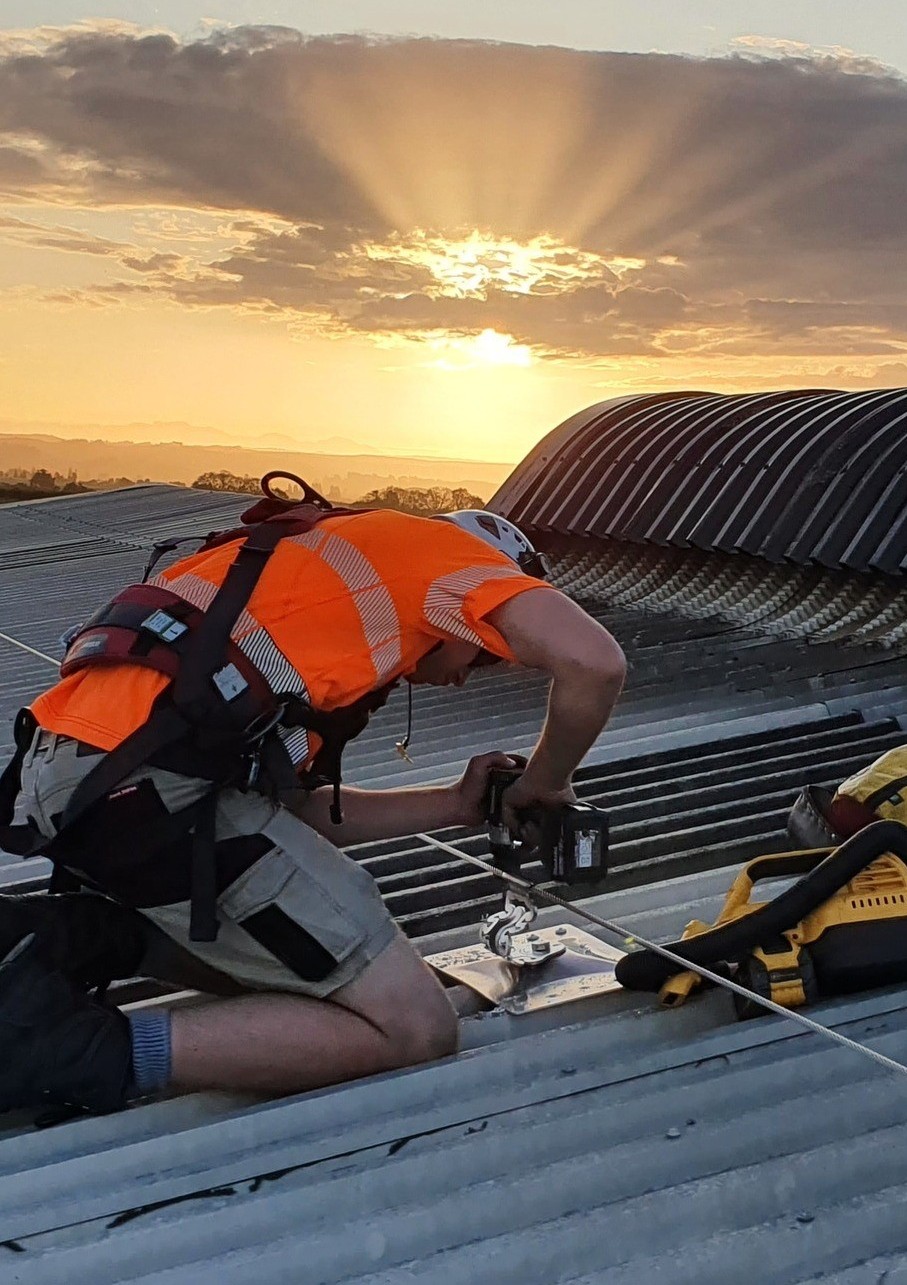

The lifeline itself is typically a galvanized or stainless steel cable between 3/8" and 5/16”" in diameter. End anchors are critical for securing the system and are mechanically fastened to the structure which may include beam clamps for steel, chemical or wedge anchors for concrete, S-5! clamps for standing seam roofs, bulb type rivets for metal roofs and toggle bolts for membrane roofs.
Supports
Intermediate supports are used to reduce cable sag and reduce distribute the load to the structure. Advanced supports allow users to bypass them without disconnecting allowing for 100% tie off.

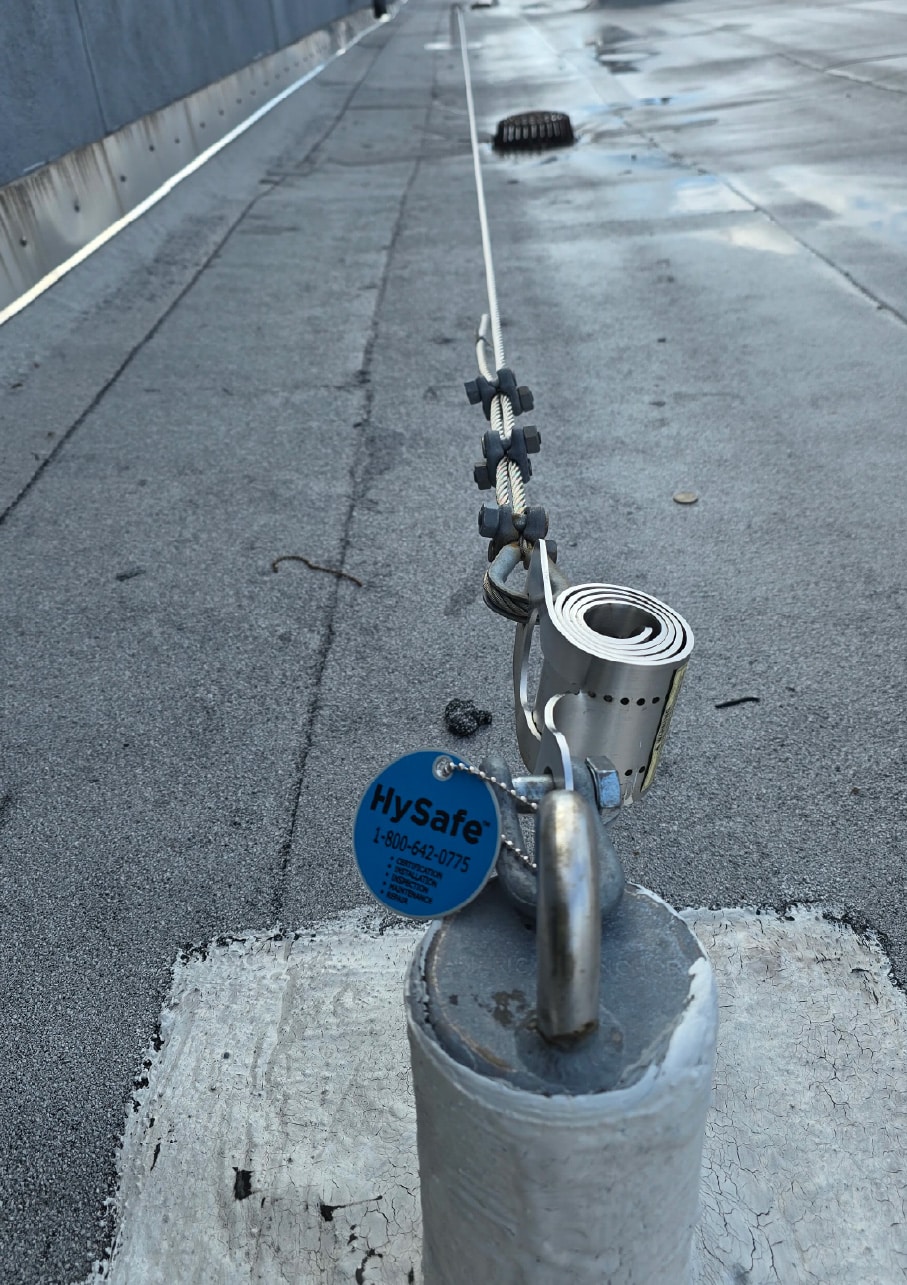

Energy Absorbers
Energy absorbers, which are essential for reducing end loads during a fall, can be built into the system.
Connection Devices

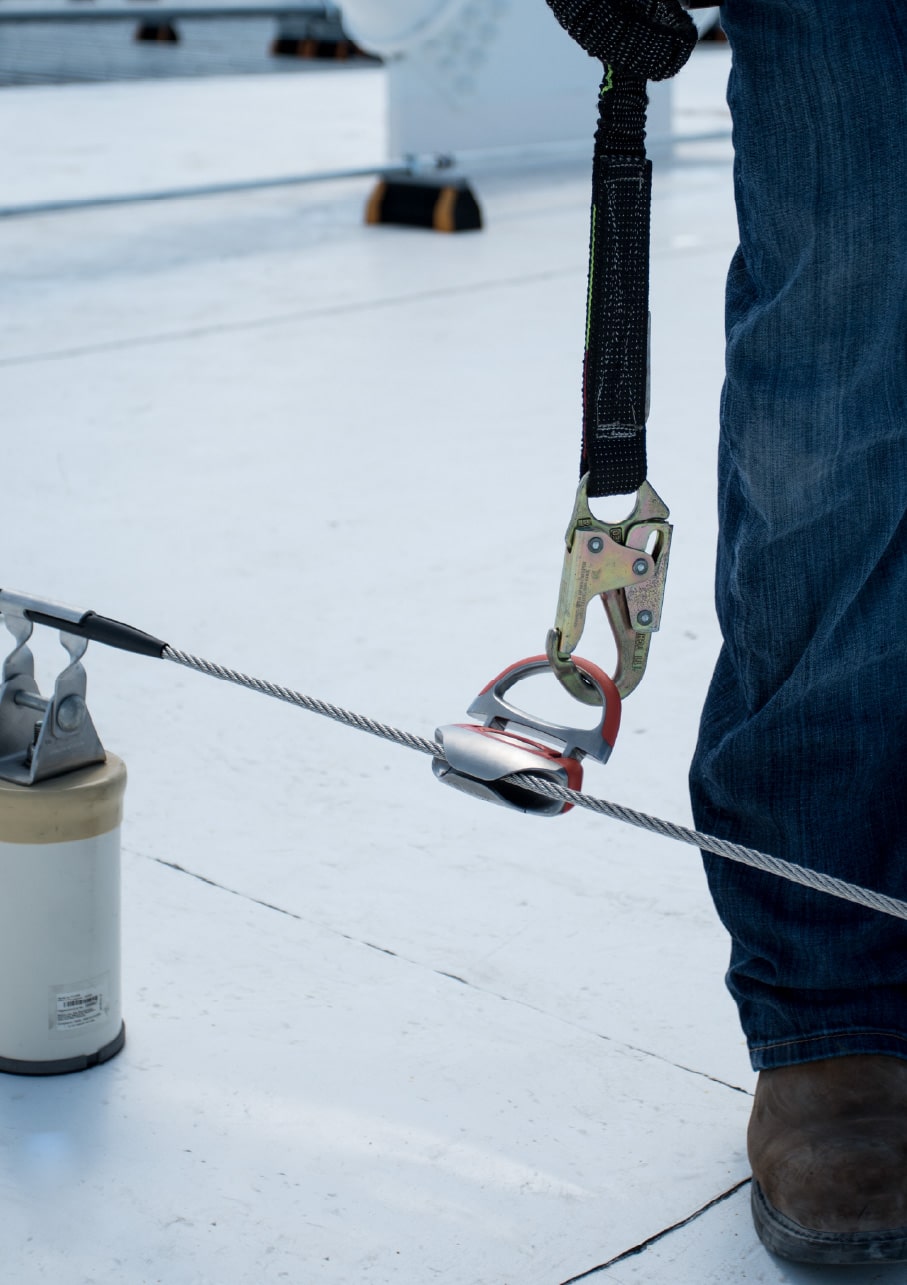

A trolley is a key component of a fall protection system, designed to allow workers to move freely along the system while staying securely connected to a self-retracting lifeline (SRL) or other fall arrest device. The trolley travels smoothly along a beam, track or cable lifeline and includes a connection point for the SRL. Trolleys allow for continuous, hands-free fall protection, enabling safe and efficient movement along the work area.
Categories
Frequently Asked Questions
What are the safety requirements for a horizontal lifeline?
All systems must meet applicable OSHA standards (such as 29 CFR 1926.502, and following ANSI guidelines is strongly recommended as the industry best practice. Fall protection systems must be capable of supporting at least 5,000 lbs. per user or be designed, installed, and used under the supervision of a qualified person as part of a complete system maintaining a safety factor of at least two.
How long can a horizontal lifeline be?
Length depends on the system’s design and engineering. We regularly install lifelines longer than this. 3M recommends we keep lifelines under 400ft for optimal use. Systems may require intermediate supports or additional engineering controls.
Do temporary horizontal lifelines require engineering calculations?
Yes. Even temporary horizontal lifeline systems need to be evaluated for anchor strength, span, user weight, and clearance to ensure safe use.
How much clearance is needed below a horizontal lifeline?
Clearance varies but lanyard or self retracting lifeline length, system sag, height of worker and fall distance must all be accounted for. Each system must be assessed individually.
How often should horizontal lifelines be inspected?
Inspections should be conducted before each use and formally documented at least annually. Temporary systems should be checked daily or whenever relocated.
Can horizontal lifelines be used for fall restraint instead of fall arrest?
Yes, when properly configured, horizontal lifelines can serve as effective fall restraint systems. By limiting a worker’s movement, they can prevent access to fall hazard zones altogether. To ensure compliance and safety, this use must be clearly outlined and documented in your fall protection plan.
