Aircraft Hangar Fall Protection
Working around fuselages, low wings, and tail assemblies presents unique challenges that standard fall protection solutions simply weren't built for. Your technicians deserve equipment that moves with them - so they can focus on the work, not the risk.
HySafe specializes in designing, engineering, and installing OSHA-compliant fall arrest systems built specifically for aviation environments. From overhead anchor points in the hangar ceiling to ground-level coverage on the tarmac, we make sure your team stays connected at every stage of maintenance.
We take care of everything from start to finish - hazard assessment, custom engineering, professional installation, hands-on training, and ongoing annual inspections. One trusted partner. One seamless system. So you can keep your fleet in the air and your people safe on the ground.
Fall Protection Requirements For Aircraft Maintenance
Aircraft maintenance falls under OSHA's General Industry standards - and that means fall protection is required any time a technician works above 4 feet, not the 6-foot threshold associated with construction environments.
Work performed on and around aircraft presents unique and significant fall hazards. Common high-risk tasks include:
Routine Maintenance & Inspections
Accessing and servicing the fuselage, wings, and tail sections where smooth, curved, and frequently slippery surfaces elevate the risk of a dangerous slip and fall.
Low-Clearance Environments
Many regional jet wing surfaces sit well under 12 feet off the hangar floor. This is less than the total clearance a conventional off-the-shelf fall arrest system may need to fully deploy.
Eliminating Swing-Fall Hazards
When technicians move along the length of an aircraft's wingspan, an improperly placed anchor point can cause a dangerous pendulum effect during a fall. Keeping the anchorage point directly overhead is critical.
Engineered Aviation Fall Protection Systems
HySafe offers permanent, portable, and custom-engineered systems designed to integrate seamlessly with your Aircraft Maintenance, Repair, and Overhaul (MRO) operations. Regardless of hangar roof heights, structural load limits, or the sizes of the aircraft serviced, our team designs solutions that provide complete access without slowing down productivity.

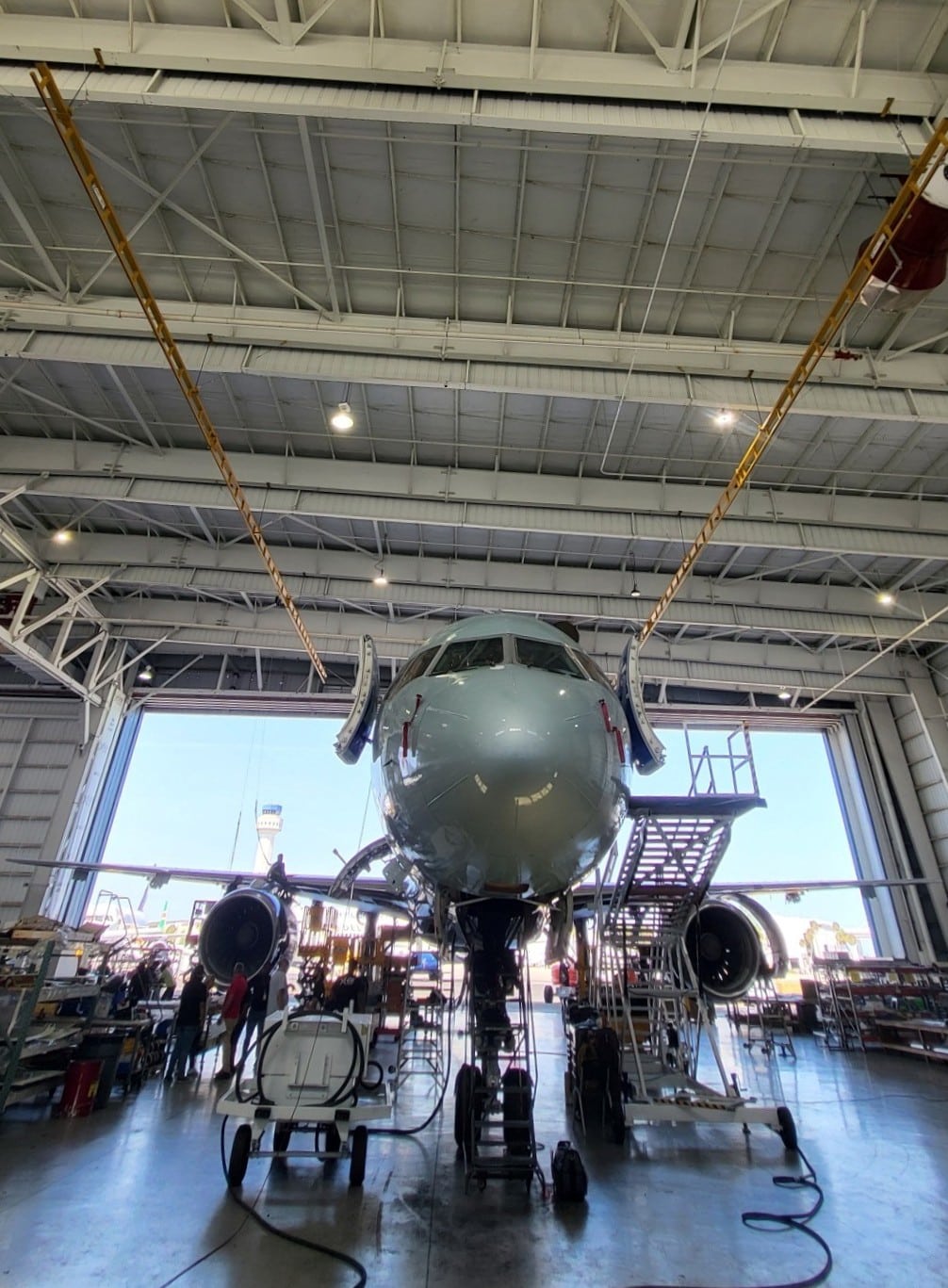

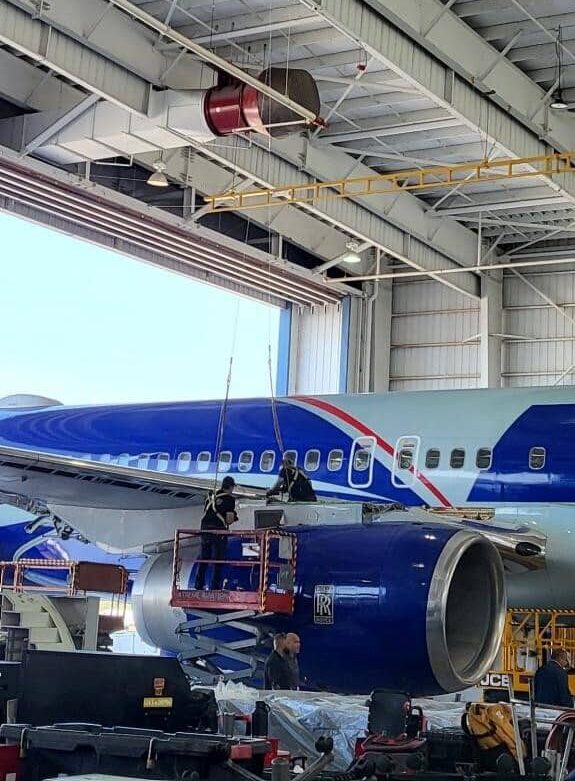

Overhead Rigid Rail Systems
Overhead track. Smooth trolley. The rigid rail system stays directly over the worker. Fall arrest in under 2 feet.
Best for: low-wing aircraft (Gulfstreams, Falcons, regional jets), dedicated MRO bays.
Why it wins: Rigid rail systems can arrest a fall almost immediately upon engagement -
making them significantly better suited for situations where the margin between the work surface and the floor is limited.
Overhead Bridge Systems (Cartesian Systems)
In hangars where aircraft positioning frequently changes, Cartesian or two-way coordinate bridge systems offer unmatched flexibility. These overhead systems allow for 100% planned coverage over the entire footprint of the hangar, enabling technicians to move freely along the X and Y axes to safely reach any point on the aircraft.
Best For: Large commercial and military hangars servicing aircraft with diverse dimensions.
Overhead Cable Lifelines
Cable horizontal lifelines provide continuous, pass-through fall protection over long spans. Engineered with high-tensile 316-grade stainless steel cables and patented overhead shuttles, these systems allow workers to traverse the entire length of the aircraft without ever needing to disconnect and reconnect their lanyards.
Best for: Long hangar bays, multi-aircraft setups, and environments requiring continuous travel over extended areas where fall clearance and aircraft height are sufficient.
Mobile Systems & Access Platforms
Safe access is the first step in preventing falls. For tarmac work or hangars lacking overhead structural steel, HySafe offers portable free-standing solutions such as mobile A-frame gantries.
Best for: Temporary or evolving work areas.
System Comparison At A Glance
Categories
Frequently Asked Questions
What is the best fall protection system for a low-wing aircraft?
An overhead rigid rail system paired with a self-retracting lifeline (SRL) is generally the best solution. The rigid track minimizes deflection, allowing the system to arrest a fall within a very short distance to prevent the worker from striking the ground or the wing.
Can one fall protection system cover differently sized aircraft in the same hangar?
Yes. HySafe designs overhead bridge (Cartesian) systems that provide full-coverage fall protection across the entire hangar floor, easily accommodating changes in aircraft dimensions and parking configurations.
Can an overhead system be installed if my hangar has a weak roof structure?
Yes. If the existing building steel cannot support the dynamic loads of a fall arrest system, HySafe can design, engineer, and install freestanding steel supports specifically tailored to your hangar's layout.
We operate on a DoD base. Does HySafe have experience with U.S. Military bases?
Yes. HySafe has direct experience designing and installing fall protection systems on U.S. Military base locations. We design to meet all standards and deliver PE-stamped drawings and specifications to meet base approval requirements to move your project along with the documentation it needs.
